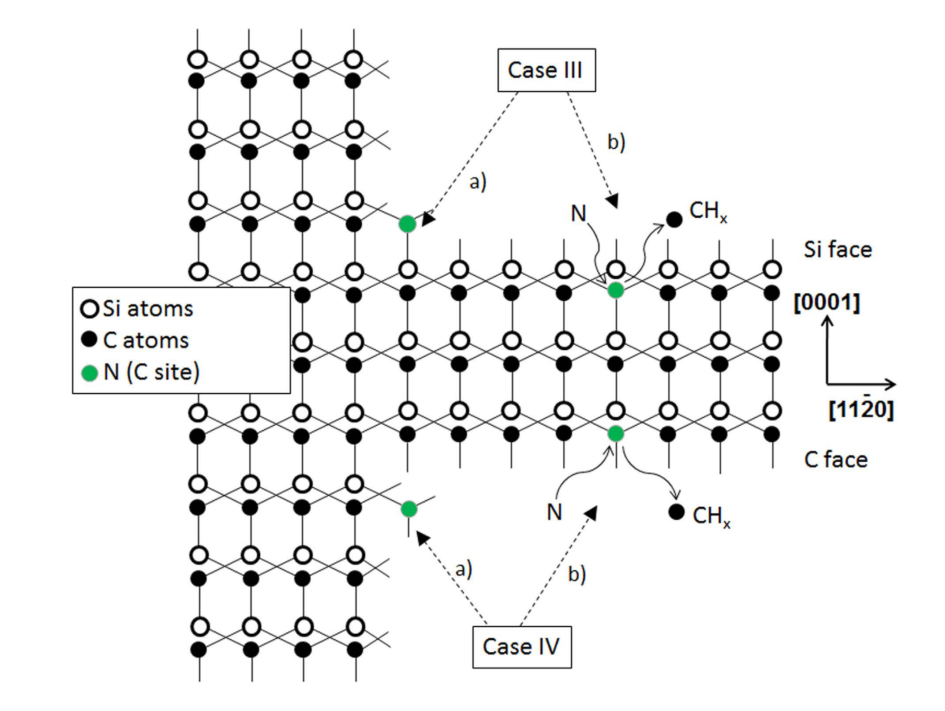

"Nitrogen doping of 4H-SiC during vapor phase epitaxy is still lacking of a general model explaining the apparently contradictory trends obtained by different teams. In this paper, the evolutions of nitrogen incorporation (on both polar Si and C faces) as a function of the main growth parameters (C/Si ratio, temperature, pressure and growth rate) are reviewed and explained using a model based on surface exchanges between the gas phase and the uppermost 4H-SiC atomic layers. In this model, N incorporation is driven mainly by the transient formation of C vacancies, due to H2 etching, at the surface or near the surface. It is shown that all the growth parameters are influencing the probability of C vacancies formation in a similar manner as they do for N incorporation. The surface exchange model proposes a new framework for explaining the experimental results even beyond the commonly accepted reactor type dependency."
A+Augmenter la taille du texteA-Réduire la taille du texteImprimer le documentEnvoyer cette page par mailPartagez cet articleFacebookTwitterLinked InGoogle+Viadeo
